BIOCRUX-G

BIOCRUX – G :

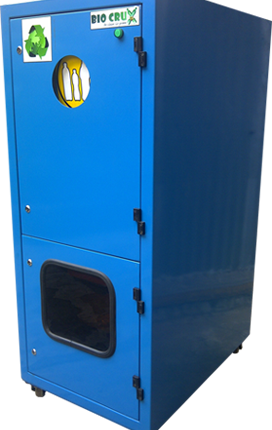

BIOCRUX – G is an automatic Noiseless pet/plastic bottle flaking machine. The machine is made with the micro-hybrid concept, it starts and stops automatically based on the bottle feeding. The mouth of the machine is attached to a flap that controls the movement of the machine. After flaking machine will stop automatically and remain shut till another bottle-fed in the machine. Each fed will reset the machine for the next cycle as per the time fixed in the timer.

Details Machine Features :

Dimensions:

• Overall Height: 1690 MM
• Overall Width: 700 MM
• Overall Depth: 1000 MM

Weight:

380 KG

Capacity:

400 bottles per hour

Body:

MS Steel

WHEEL:

Capacity of 400 KG

Indicator:

To indicate machine is running

Size / Quality of Bottles:

Up to 2000ML bottle of PET/Plastics only

WINDOW in bottom:

300 MM X 300MM

Features Inside (mechanics) :

Motor :

3HP (2.2 KVA) – Crompton/Havells

Connection :

Single PHASE ( 230 V) / 3 PHASE (440 V)

Blade :

D2/ Special alloy – 3 rotary & 2 fixed

Black Box :

With. Nickel / Chrome plating

Timer :

SELEC: ST346

Hopper :

Specially designed hopper – to absorb up to 2000ml bottle standing

Starter :

L & T Single Phase Smart Starter / L & T 3 phase starter

Limit Switch / Safety Switch :

Limit Switch ensures auto starts of the machine. All doors are attached to a safety switch to prevent any accident.

Wall :

Insulated inside to absorb noise of machine

FLAP + Limit switch :

Regulate machine: Start/stop – Micro Hybrid

Filter :

To manage the size of flakes

Storage Bin :

Capacity :

10Kg flakes or 500 Bottles of different sizes

Dimension :

640 L X 380 H X 300 W

Body :

MS and Acrylic window. Roller in bottom for free movement

To know more, please check Biocrux.
