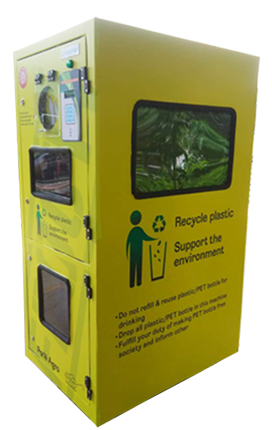

BIOCRUX RVMD 3T

Reverse Vending Machine-Digital with 3 side display is an automatic Noiseless pet/plastic bottle flaking and coupon machine. The machine is made with the micro-hybrid concept, it starts and stops automatically based on the bottle feeding. The mouth of the machine is attached to a flap that controls the movement of the machine. After flaking machine will stop automatically and remain shut till another bottle-fed in the machine. Each fed will reset the machine for the next cycle as per the time fixed in the timer. Once the bottle is inserted machine starts automatically and crushes the bottle into fine pieces. It has a digital coupon vending feature:

SMS-based Couponing System: Once the user drops a bottle dropped, in the machine, he will be prompted for a mobile number. Once the user inserts the mobile number via the keypad provided on the machine. The machine will send SMS to the customer on the user’s mobile with a discount coupon to redeemable at a predefined counter as per specification fed.

SMS text sent to the user and Video played on the screen are fully customizable.

Features (outer):

DIMENSIONS:

• Overall Height: 1800 MM
• Overall Width: 800 MM
• Overall Depth: 1000 MM

Weight:

400 KG

Capacity:

90-120 bottles per hour

Two-line Digital Display:

Indication of Dropping bottle

Key Pad:

Enter Mobile number
Mobile charging point

BODY:

MS Steel

Indicator:

To indicate the machine is running

Size / Quality of Bottles:

Up to 2000ML bottle of PET/Plastics only

Digital Screen:

20″ size in the front and 28″ screen on both side

WINDOW in the bottom :

300 MM X 300MM

Features Inside (mechanics):

Motor:

3HP (2.2 KVA) – Crompton/Havells

Connection:

Single PHASE (230 V) / 3 PHASE (440 V)

Blade:

D2 blade – 3 rotary & 2 fixed

Black Box:

With E. Nickel/Chrome plating

Control Panel:

Microprocessor

Hopper:

Specially designed hopper – to absorb up to 2000ml bottle standing

Starter:

L & T Single-phase Smart starter / L & T for 3 phase

Blade::

D2/Chrome blade – 3 rotary & 2 fixed

Limit Switch Safety Switch:

Limit Switch ensures auto starts of the machine. All doors attached with safety switch to prevent an accident

Wall:

Insulated inside to absorb the noise of the machine

FLAP + Limit switch:

Regulate machine: Start/stop – Micro Hybrid

Filter:

To manage the size of flakes

Storage Bin :

Capacity :

15Kg 750 to 800 one liter Bottle

Dimension :

650 L X 400 H X 400 W

Body :

MS steel and Acrylic window. Roller in the bottom for free movement
